Product Specifications

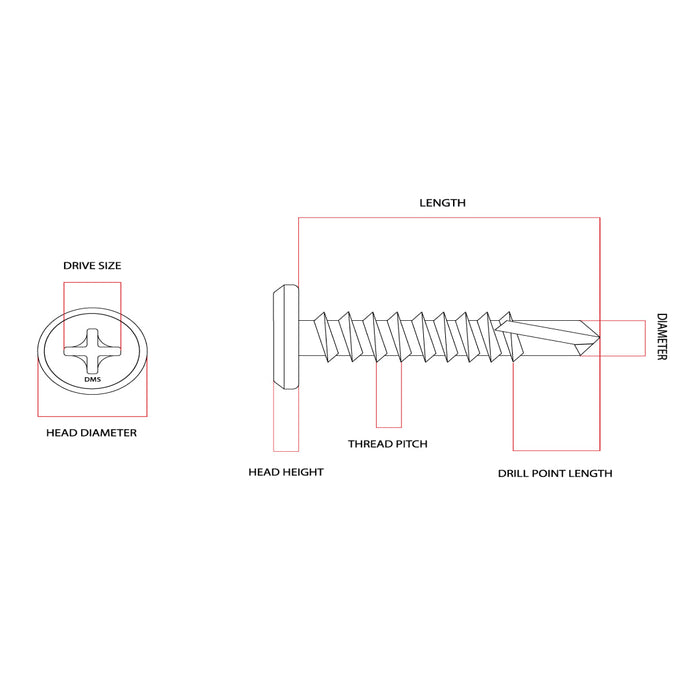

| Screw Type | Wafer Head Self-Drilling Screw |
| Gauge | 10G |
| Drive Type | Phillips Drive |
| Drive Size | PH2 |
| Head Type | Wafer Head |
| Head Height | Approx 2.0mm |
| Head Diameter | Approx. 9.0 mm |
| Thread Diameter | 4.8mm |
| Thread Pitch | 16TPI |
| Thread Length | Contact us for exact specifications |
| Point Type | Tek Point |
| Point Length | 5.0mm |
| Corrosion Resistance | Salt Spray Resistance exceeding 48 hours and up to several hundred hours. Suitable for outdoor environments exposed to the rain and humidity such as fencing. Unsuitable for highly corrosive environments. |
| Material Application | Ideal for metals such as steel and aluminium. Excels in applications such as construction and manufacturing which require fastening metal. Highly versatile. |
| Installation Recommendations | Ensure the correct drive type and size is used as mentioned above. Apply steady pressure when driving the screw to ensure the screw cuts into the material efficiently. |
| Product Type | Metal Screws |
This information is provided as a general guide and may vary slightly. If you’d like confirmation on specifications, our team can verify the details for you.

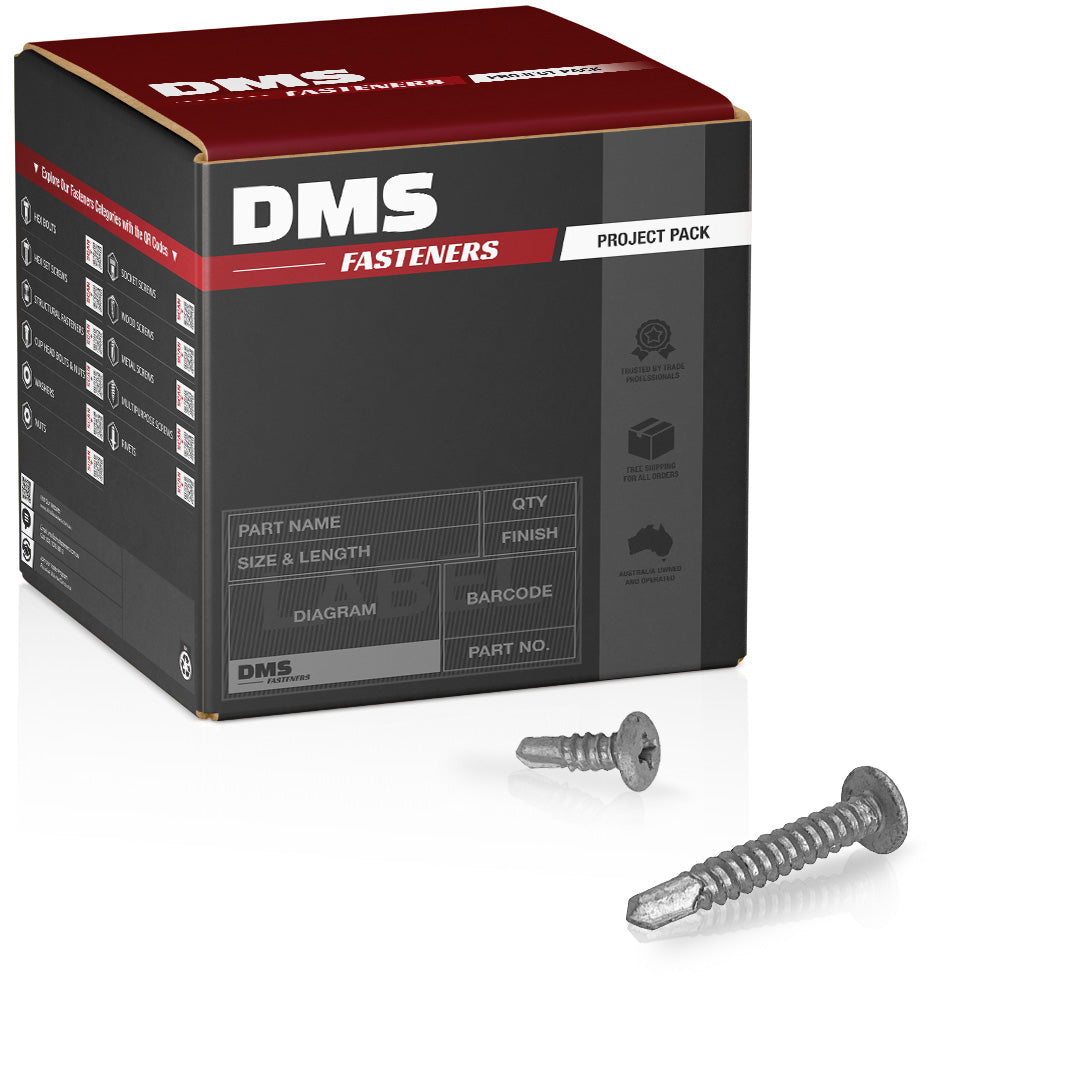

Wafer Head Self-Drilling Screws
Maximize Precision with Wafer Head Self-Drilling Screws
Our Wafer Head Self-Drilling Screws are engineered for excellence, providing a perfect balance between head size and surface area, making them ideal for applications requiring a low-profile head without compromising on clamping force. Designed specifically for metal, these screws are your go-to for fastening without pre-drilling.
Product Features:
- Low Profile Head: Ensures a flush finish for a sleek appearance.
- Self-Drilling Tip: Eliminates the need for pre-drilling, saving time and effort.
- Galvanised Finish: Offers superior corrosion resistance for long-lasting durability.
Specifications:
- Screw Gauges Available: 8g and 10g
- Lengths Available: 12mm, 16mm, 22mm, 30mm, 40mm, and 50mm
- Finish: Galvanised for superior corrosion resistance
Use Cases:
- Metal Cladding: Ideal for attaching metal sheets to metal frames, ensuring a secure and flush finish.
- Light Gauge Steel Framing: Perfect for construction projects requiring a discreet yet strong fastening solution.
- Electrical and HVAC Installations: Provides a secure hold for mounting components to metal structures without protruding.
Finish Style:
The galvanised finish of our Wafer Head Self-Drilling Screws not only enhances the aesthetic appeal of your projects but also significantly increases the screws' longevity. This finish involves applying a protective zinc coating to steel or iron, to prevent rusting. The galvanisation process provides a durable barrier against environmental elements, making these screws an ideal choice for both indoor and outdoor applications where moisture and corrosion could be a concern. The sleek, silver appearance integrates seamlessly into your projects, ensuring that functionality does not compromise style.
