Product Specifications

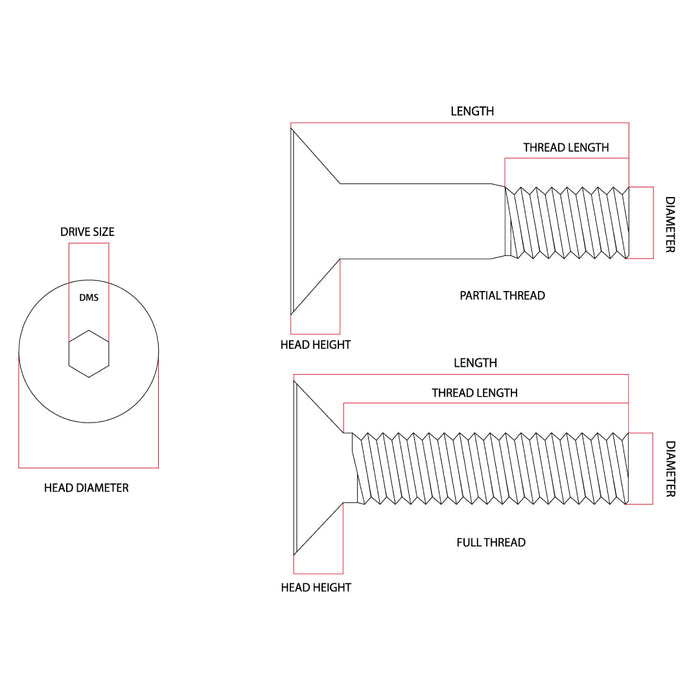

| Screw Type | Countersunk Head Socket Screw |
| Gauge | M5 |
| Drive Type | Internal Hex |
| Drive Size | 3.0mm |
| Head Type | Countersunk Head |
| Head Height | Approx 3.5mm |
| Head Diameter | Approx. 10.0mm |
| Thread Diameter | 5.0mm |
| Thread Pitch | 0.8p |
| Thread Length | Contact us for exact specifications |
| Corrosion Resistance | Salt Spray Resistance upwards of 72 to several hundred hours. Suitable for outdoor and marine environments such as kitchen appliances and food processing equipment. |
| Material Application | Ideal for use in precision assembly such as electronics and machinery due to robust fastening capabilities. Suitable for materials requiring strong and precise fastening such as metal and plastics. |
| Installation Recommendations | Pre-Drill holes. Ensure the correct drive type and size is used as mentioned above. Use matching allen keys for tightening. Apply thread locker if needed. |
| Listing Group ID | SS5-CSK-A2 |
| Product Type | Socket Screw |
This information is provided as a general guide and may vary slightly. If you’d like confirmation on specifications, our team can verify the details for you.

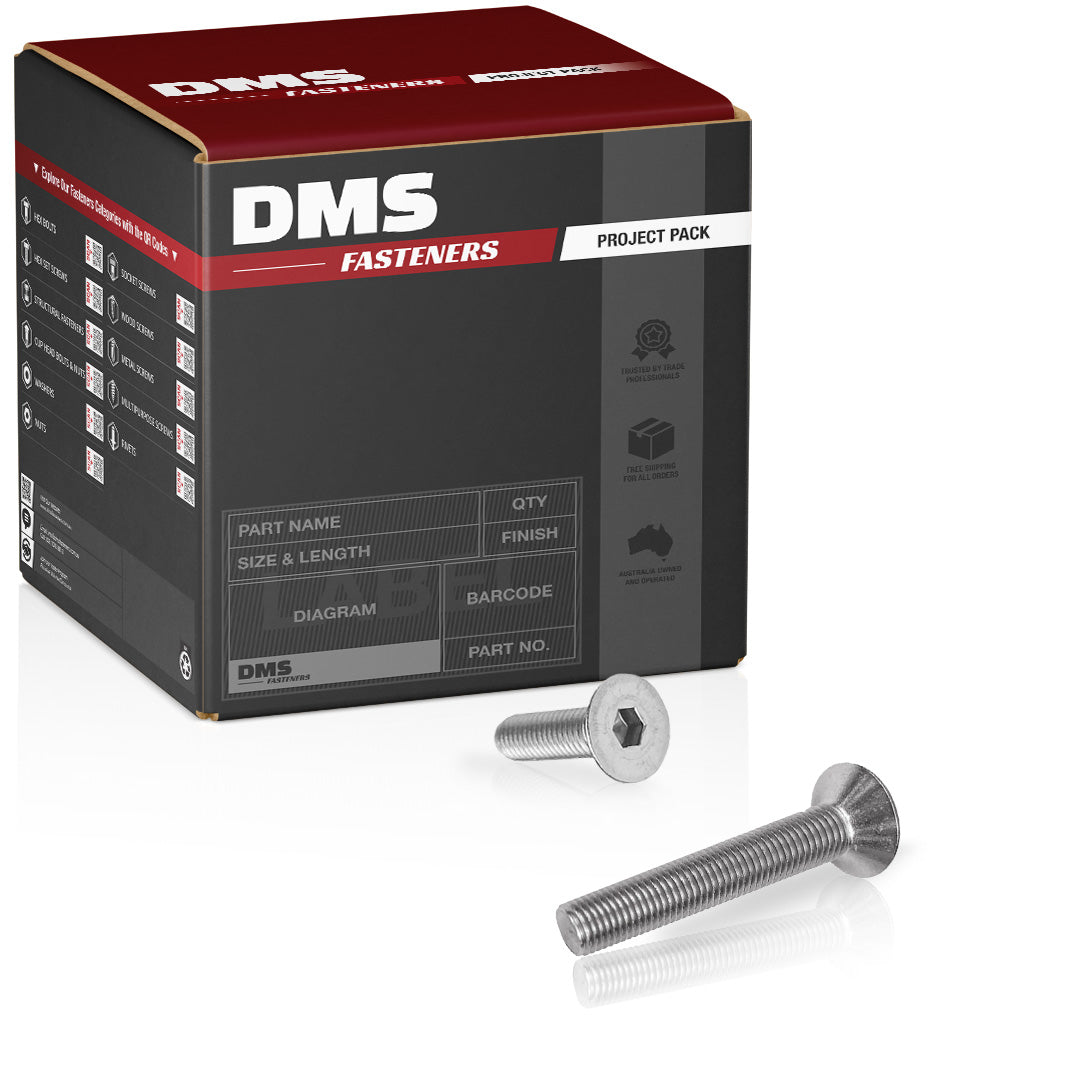

Flat Head Countersunk Socket Screws
Achieve a Sleek Finish with Flat Head Countersunk Socket Screws
Introducing our Flat Head Countersunk Socket Screws, precision-engineered for applications requiring a flush surface finish. Ideal for woodworking, metalworking, and decorative projects, these screws are designed to sit perfectly flush with the material surface, eliminating any protrusion for a clean, aesthetic appearance. Available exclusively in metric sizes, these screws are crafted from G304 stainless steel, ensuring durability and corrosion resistance for both indoor and outdoor applications.
Product Features:
- Flat Head Countersunk Design: The flat head is countersunk to allow the screw to sit flush with the surface of the workpiece, providing a smooth, clean finish without any sharp edges.
- Metric Sizing for Precision: Available in metric sizes M2 to M8, catering to a wide range of project requirements with precision.
- Extended Length Options: With lengths from 4mm to 100mm, ensuring the perfect fit for your specific application needs.
- High-Quality G304 Stainless Steel: Offers excellent corrosion resistance, making these screws suitable for a variety of environments.
- Precision Thread Pitch: Thread pitches include 0.40mm, 0.45mm, 0.50mm, 0.70mm, 0.80mm, 1.00mm, and 1.25mm, allowing for precise fastening and optimal load distribution.
- Allen Key Installation: Designed for installation with an Allen key, providing a secure fit and the ability to apply high torque without stripping.
Specifications:
- Metric Sizes: M2, M2.5, M3, M4, M5, M6, M8
- Metric Lengths: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 90mm, 100mm
- Material: G304 Stainless Steel
- Thread Pitch: 0.40mm, 0.45mm, 0.50mm, 0.70mm, 0.80mm, 1.00mm, 1.25mm
Use Cases:
- Woodworking and Metalworking: Perfect for projects requiring a flush finish, such as cabinetry, furniture, and decorative trim.
- Decorative Projects: Ideal for installations where the aesthetic quality of the finish is paramount.
- General Construction: Suitable for applications where a sleek, unobtrusive fastening solution is desired.
Our Flat Head Countersunk Socket Screws are the go-to choice for professionals and hobbyists seeking a high-quality fastening solution that combines strength, durability, and a polished look. With a wide range of sizes and the superior quality of G304 stainless steel, these screws are an indispensable part of your toolkit for achieving a flawless finish on your projects.
