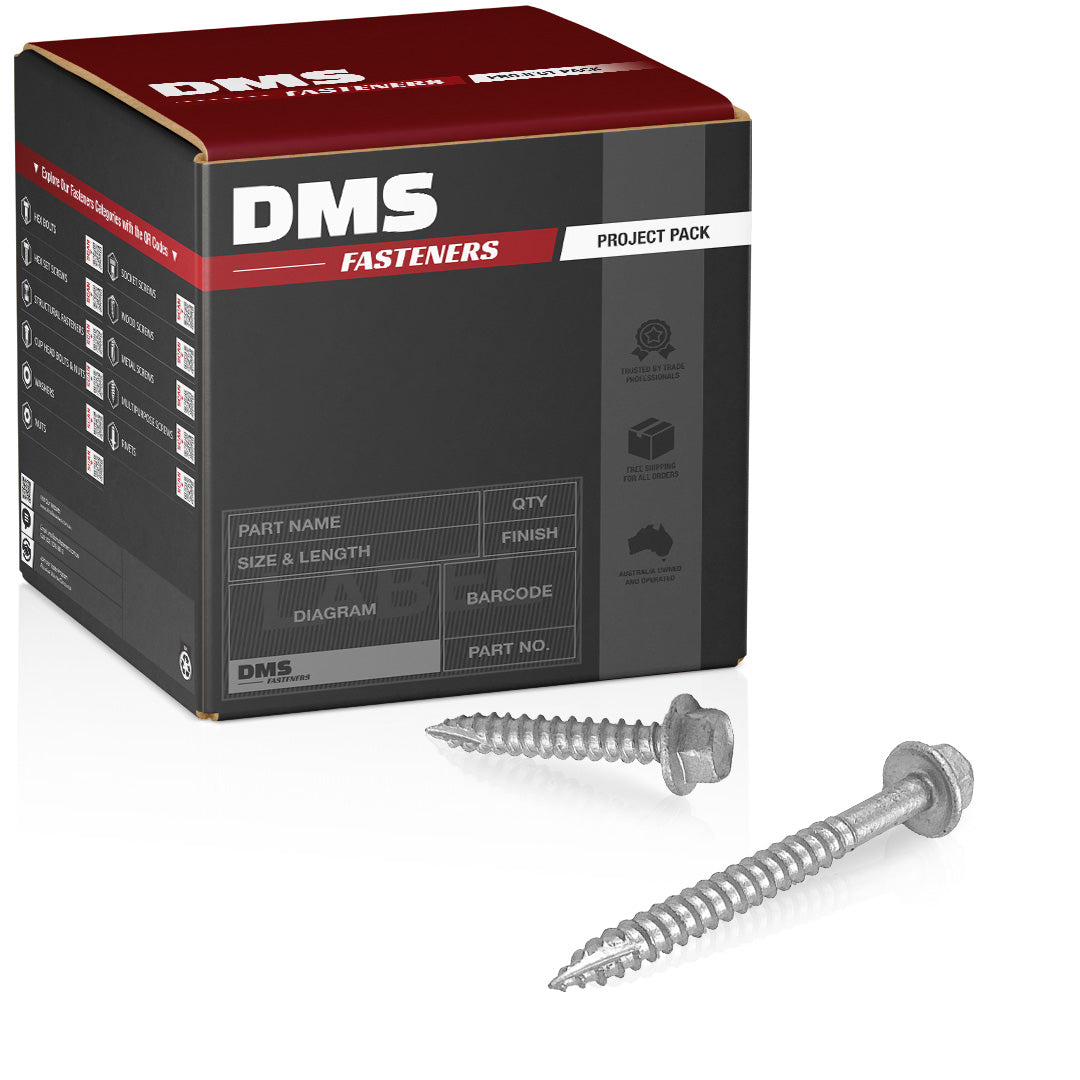

14g-10 x 200mm T17 (Type 17) Hex Head Self Drilling Screw Tek Galvanised Class 3 / 4
Regular Price
$69.99 AUD
Product Specifications
| Screw Type | Type 17 Self-Drilling Screw |
| Gauge | 14G |
| Drive Type | Hex Drive |
| Drive Size | Approx 9.5 mm |
| Head Type | Hex Head |
| Head Height | Approx. 7 mm |
| Head Diameter | Approx. 14 mm |
| Thread Diameter | 6.3mm |
| Thread Pitch | 10 TPI |
| Thread Length | Contact us for exact specifications |
| Point Type | Type 17 Point |
| Point Length | Approx. 11.5 mm |
| Corrosion Resistance | Salt Spray Resistance exceeding 48 hours and up to several hundred hours. Suitable for outdoor environments exposed to the rain and humidity such as fencing. Unsuitable for highly corrosive environments. |
| Material Application | Ideal for hard or dense woods and construction with pressure-treated lumber. Excels in precision tasks such as furniture and decking construction. |
| Installation Recommendations | Ensure the correct drive type and size is used as mentioned above. Apply steady pressure when driving the screw to ensure the screw cuts into the material efficiently. |
| Product Type | Wood Screws |
This information is provided as a general guide and may vary slightly. If you’d like confirmation on specifications, our team can verify the details for you.
Type 17 Hex Head Self-Drilling Screws for Wood
Maximize Your Woodworking Projects with Type 17 Hex Head Self-Drilling Screws
Introducing our Type 17 Hex Head Self-Drilling Screws, specifically designed for wood applications. These screws are a staple in professional woodworking, offering unmatched durability and ease of use. Whether you're working on residential construction, outdoor decking, or custom furniture, our Type 17 screws provide the reliability and performance you need.
Product Features:
- Type 17 Point: Allows for fast and effortless penetration into wood, minimizing splitting without the need for pre-drilling. This feature is especially beneficial for dense hardwoods and softwoods alike.
- Hex Head Design: Equipped with a hex head for superior torque control, ensuring a tight and secure fit. Installation is made easy with a hex socket, providing a straightforward approach to fastening.
- Neo and Non-Neo Variations: Catering to a wide range of project requirements, our screws are available with or without a neo (neoprene washer). The neo variation offers enhanced sealing against moisture, making it ideal for outdoor or moisture-prone environments.
- Versatile Application: Perfect for a variety of woodworking projects, from decking and fencing to structural framing and cabinetry.
Specifications:
- Screw Gauges Available: 8g, 10g, 12g, and 14g, accommodating various material thicknesses and project scales.
- Lengths Available: From 20mm up to 200mm, our extensive range of lengths ensures you have the right screw for any application.
Finish Styles:
- Galvanised: Provides a durable layer of zinc coating that offers excellent corrosion resistance, making it suitable for outdoor applications and areas prone to moisture.
- G304 Stainless Steel: Known for its corrosion resistance, G304 stainless steel is an ideal choice for general outdoor applications, providing a balance between strength and resistance to corrosion.
- G316 Stainless Steel: Grade 316's molybdenum content makes it more resistant to pitting and crevice corrosion than Grade 304. This added protection is crucial in applications where the fasteners are exposed to seawater, deicing salts, or other chloride-rich environments. G316 is the top choice for projects requiring the utmost in corrosion protection.
- Zinc Yellow: This finish not only provides corrosion resistance but also adds a visually appealing, bright finish to the screws. Zinc Yellow is ideal for projects where aesthetics are important, offering a distinctive look while maintaining protection against corrosion.
Use Cases:
- Residential Construction: Ideal for framing, subfloors, and roofing, providing a strong hold and resistance to environmental factors.
- Outdoor Decking and Fencing: The neo variation is perfect for outdoor applications, offering additional protection against moisture.
- Custom Furniture and Cabinetry: For projects requiring a clean finish and durability, our screws ensure your creations stand the test of time.
