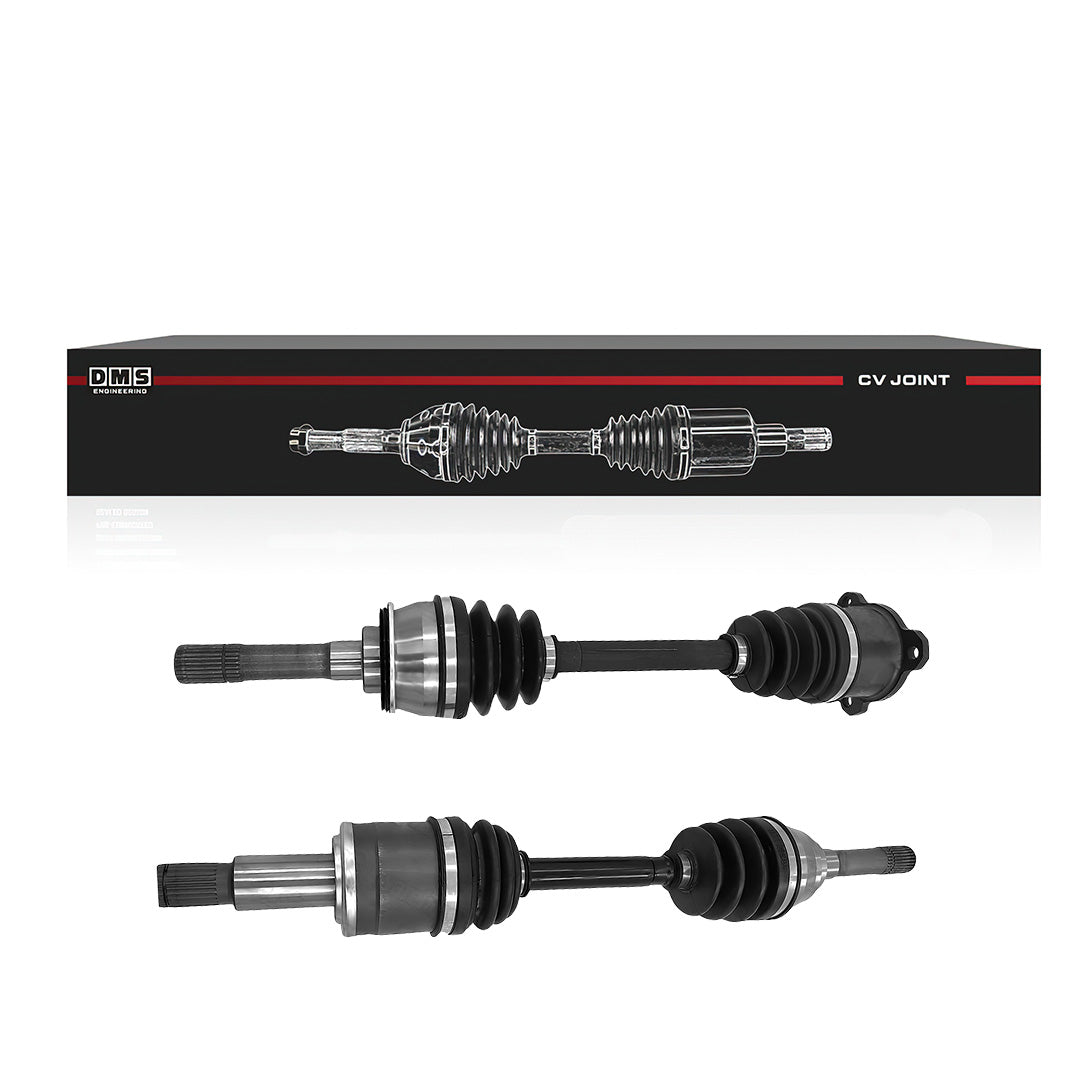

Suzuki Grand Vitara (1998 - 2005) Front CV Joint Drive Shafts LH + RH
Regular Price
$515.00 AUD
Compatible with Suzuki Grand Vitara (1998 - 2005) models, our premium CV front drive shafts are manufactured using the latest CNC machined equipment. Made from top quality materials, these CV joints are tested to withstand high temperatures and heavy loads to ensure long life and reliable performance in all weather conditions.
Compatibility
- Fitment Models: Suzuki Grand Vitara models from years 1998, 1999, 2000, 2001, 2002, 2003, 2004 and 2005. Compatible with 4x4 drive type for 4-Speed Automatic Transmission / 5-Speed Manual Transmission.
- Variants: JLX, Sports, Freestyle Sport, Limited Edition Sports, Slalom, Special Edition, Sport.
-
Engine Code: SQ416, SQ420, SQ625
- Notes: 1.6L 4cyl G16B / 2.0L 4cyl J20A / 2.5L V6 H25A engines only.
Features
-
Robust Design: Manufactured to meet or exceed OEM quality standards.
-
Neoprene Boots: Features a high quality neoprene dust boots with extreme temperature resistance that helps prevent contamination.
-
Moly Greased: Crafted with a specially formulated high-temperature moly grease to resists friction at high speed revolutions.
- Precision Machined Splines: Designed to match the OE specs and function to deliver accurate power transmission to your vehicle.
Specifications
- Condition: 100% Brand New
- Material: High quality alloy steel
- Spline Count: 26 T (LH) / 26 T (RH)
- Compressed Length: 532mm (LH) / 607mm (RH)
- Inboard Joint Type: Bolt-on / 3-bolt Flange (LH)
- Flange Bolt Diameter: 105mm (LH)
- Bolt Hole Diameter: 10.4mm (LH)
- Flange Outer Diameter: 126.5mm (LH)
- Spline Count (Diff Side): 26 T (RH)
Package Contents
- CV Front Drive Shafts: LH + RH
Ideal for Suzuki Grand Vitara owners looking to replace their worn and aged-factory CV joint drive shafts to ensure smooth and reliable power transfer for a more comfortable driving experience.
As our components play a critical role in your vehicle's performance and safety, please verify compatibility with your specific vehicle model. Professional installation is strongly recommended.
