Product Specifications
| Screw Type | Counterunk Head Self-Drilling Screw |
| Gauge | 8G |
| Drive Type | Phillips Drive |
| Drive Size | PH2 |
| Head Type | Countersunk Head |
| Head Height | Approx 3.5mm |
| Head Diameter | Approx. 8.0 mm |
| Thread Diameter | 4.2mm |
| Thread Pitch | 18TPI |
| Thread Length | Contact us for exact specifications |
| Point Type | Tek Point |
| Point Length | 5.0mm |
| Corrosion Resistance | Salt Spray Resistance between 12-48 hours. Suitable for indoor applications or outdoor environments with limited exposure to corrosive elements such as indoor furniture and office equipment. |
| Material Application | Ideal for metals such as steel and aluminium. Excels in applications such as construction and manufacturing which require fastening metal. Highly versatile. |
| Installation Recommendations | Ensure the correct drive type and size is used as mentioned above. Apply steady pressure when driving the screw to ensure the screw cuts into the material efficiently. |
| Product Type | Metal Screws |
This information is provided as a general guide and may vary slightly. If you’d like confirmation on specifications, our team can verify the details for you.

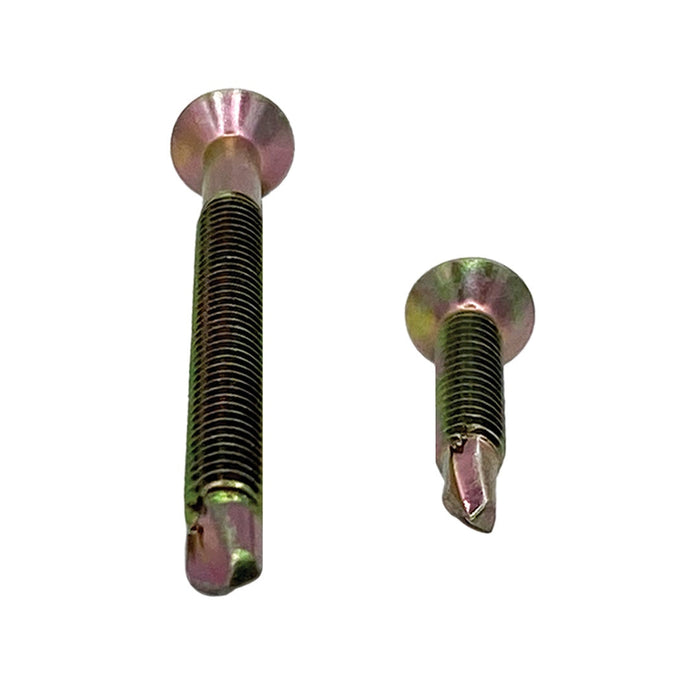

Countersunk Self-Drilling Screws
Achieve a Flush Finish with Countersunk Self-Drilling Screws
Countersunk Self-Drilling Screws are meticulously designed to provide a seamless, flush finish, ensuring a sleek and clean appearance for all your metal fastening needs. These screws are the ideal choice for projects where a discreet yet strong fastening solution is paramount.
Product Features:
- Flush Finish Design: The countersunk head is engineered to sit perfectly flush with the surface, eliminating any protrusion for a smooth, clean look.
- Self-Drilling Tip: Equipped with a self-drilling tip that allows for quick and efficient penetration into metal, eliminating the need for pre-drilling and saving valuable time on installation.
- Versatile Application: These screws are suitable for a wide range of applications, including architectural metalwork, signage, and furniture, where a non-obtrusive finish is essential.
- Easy Installation: Can be easily installed with a standard PH2 Phillips screwdriver or a PH2 Phillips Driver Bit in a power tool, making the installation process straightforward and efficient.
Specifications:
- Screw Gauges Available: 6g, 8g, and 10g, to accommodate various material thicknesses and project requirements.
- Lengths Available: 20mm, 25mm, 30mm, 40mm, 50mm, and 65mm, providing flexibility for different applications.
- Finishes: Available in both Galvanised and Zinc Yellow finishes, ensuring both aesthetic appeal and protection against corrosion.
Use Cases:
- Architectural Metalwork: Ideal for both decorative and structural applications where the fastener must be concealed.
- Signage and Facades: Provides a secure attachment for signs and facades, offering a clean, professional appearance.
- Furniture and Cabinetry: Ensures a strong hold for metal furniture and cabinets, with a flush finish that enhances the overall design.
Finish Style:
- Galvanised Finish: Offers a durable layer of protection against rust and corrosion, making it suitable for outdoor or moisture-prone environments.
- Zinc Yellow Finish: Not only provides corrosion resistance but also adds a visually appealing, bright finish to the screws, perfect for projects where aesthetics are a consideration.
Installation:
The installation of Countersunk Self-Drilling Screws is designed to be as efficient as possible. With their self-drilling tip, these screws allow for direct application into metal, bypassing the need for pre-drilled holes. For best results, use a PH2 Phillips screwdriver or a compatible driver bit in a power tool. This ensures a quick, secure, and flush installation, perfectly aligning with the aesthetics and structural requirements of your project.
