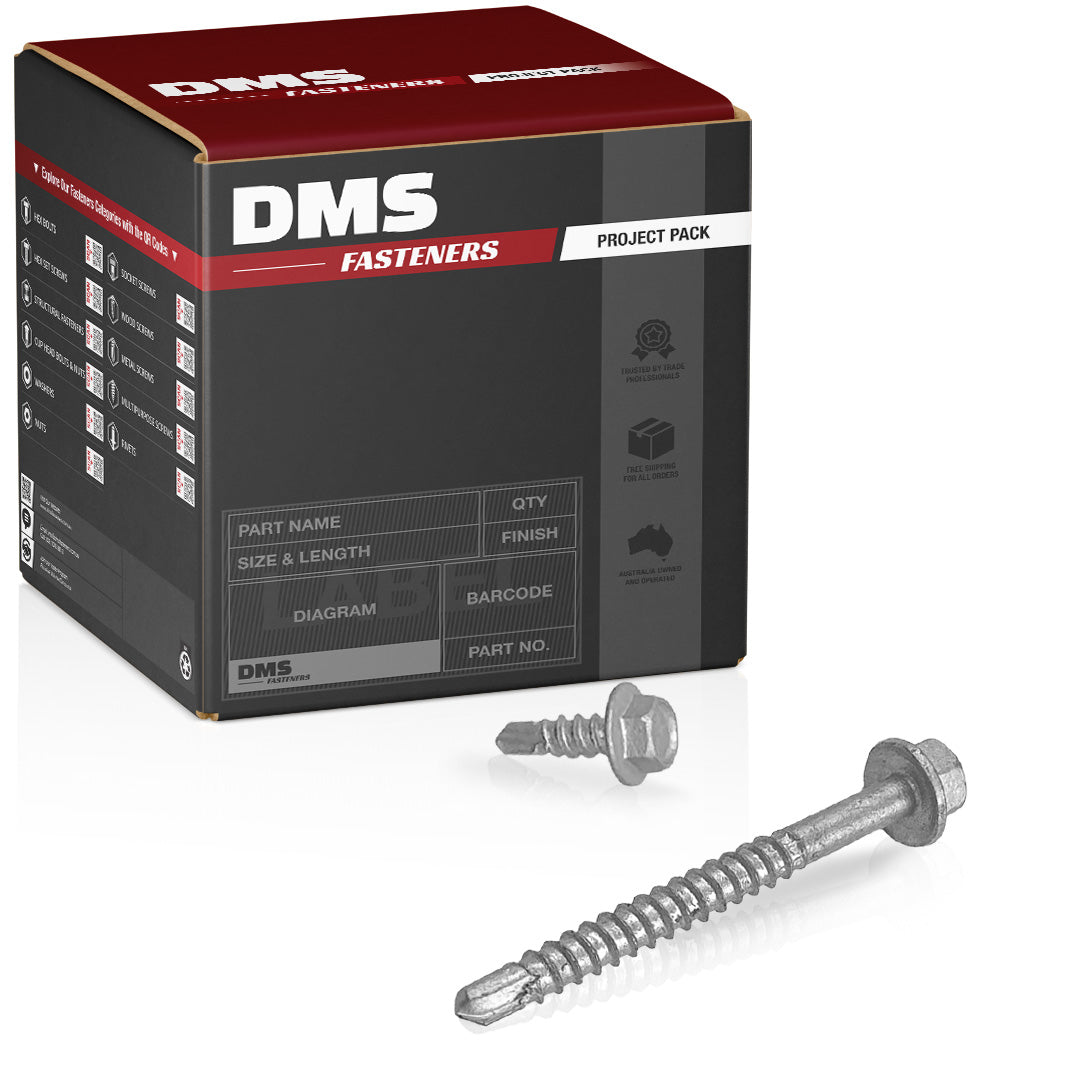

Sandbank Colorbond 10g-16 x 16mm Hex Head Self Drilling Screw Tek Galvanised
Regular Price
$17.99 AUD

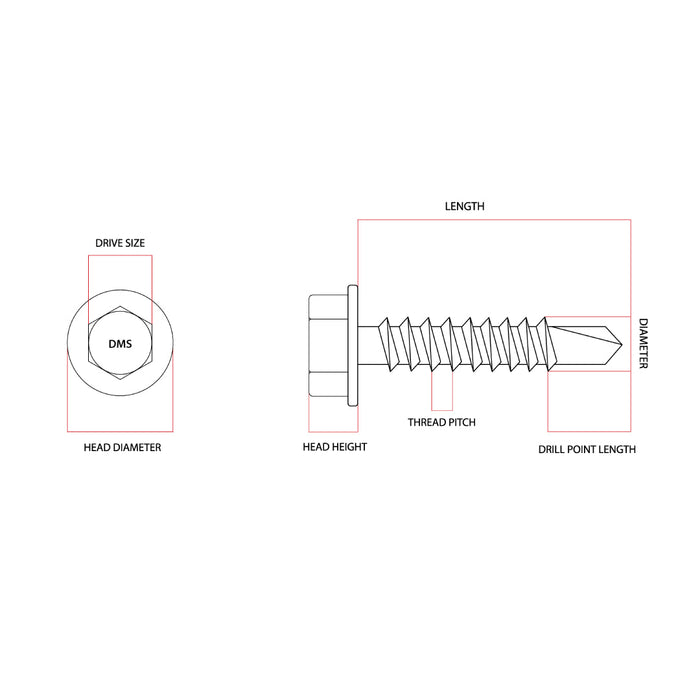

Product Specifications
| Colour | Sandbank |
| Screw Type | Hex Head Self-Drilling Screw |
| Gauge | 10G |
| Drive Type | External Hex Drive |
| Drive Size | Approx. 8.0mm |
| Head Type | Hex Head |
| Head Height | Approx 4.5mm |
| Head Diameter | Approx. 11.0 mm |
| Thread Diameter | 4.8mm |
| Thread Pitch | 16 TPI |
| Thread Length | Contact us for exact specifications |
| Point Type | Tek Point |
| Point Length | 7.0mm |
| Corrosion Resistance | Salt Spray Resistance exceeding 48 hours and up to several hundred hours. Suitable for outdoor environments exposed to the rain and humidity such as fencing. Unsuitable for highly corrosive environments. |
| Material Application | Ideal for metals such as steel and aluminium. Excels in applications such as construction and manufacturing which require fastening metal. Highly versatile. |
| Installation Recommendations | Ensure the correct drive type and size is used as mentioned above. Avoid over-tightening. Consider pilot holes for hard metals. Apply steady pressure when driving the screw. |
This information is provided as a general guide and may vary slightly. If you’d like confirmation on specifications, our team can verify the details for you.
Colorbond Hex Head Self-Drilling Screws
Elevate Your Projects with Colorbond Hex Head Self-Drilling Screws
Introducing our professional-grade Colorbond Hex Head Self-Drilling Screws, a pivotal addition to our metal self-drilling screw range. These screws are designed to meet the rigorous demands of high-strength fastening, combining durability with aesthetic appeal to complement any project.
Product Features:
- Large Diameter Hex Washer Head: Offers an expanded surface area, ensuring a robust clamping action upon tightening. This feature is crucial for securing brackets, components, steel sections, assemblies, and sheeting with confidence.
- Hardened Shank and Drill Point: Engineered for effortless penetration into steel thicknesses ranging from 2.5mm to 4.8mm, these screws simplify the installation process by eliminating the need for pre-drilling.
- Neo and Non-Neo Variations: Available in both with neo (neoprene washer) for enhanced sealing against moisture and without neo variations, catering to diverse project requirements and ensuring versatility in application.
- Hex Socket Installation: Requires a hex socket for installation, ensuring a secure and efficient fastening experience.
Specifications:
- Finish: High-performance Class 4 Galvanised finish, offering premium corrosion protection suitable for both internal and external applications. This ensures longevity and maintains the integrity of your projects in various environments.
- Colorbond Range: Painted in the Colorbond range of colours, these hex head metal drilling tek screws are perfect for projects requiring matching coloured tek screws, providing a seamless and visually appealing finish.
Available Colorbond Colors:
- Basalt
- Blue Ridge
- Bushland
- Classic Cream
- Cottage Green
- Deep Ocean
- Dune
- Headland
- Ironbark
- Ironstone
- Loft
- Manor Red
- Monument
- Night Sky
- Pale Eucalypt
- Paperbark
- Plantation
- Primrose (Domain)
- Pure White
- Sandbank
- Shale Grey
- Stone (Riversand)
- Surfmist
- Terrain
- Wheat (Harvest)
- Wilderness
- Windspray
- Woodland Grey
Use Cases:
- High-Strength Fastening: Ideal for attaching brackets, components, steel sections, and assemblies to steel frames, ensuring a secure hold in structural applications.
- Color Matching: Perfect for projects where aesthetics are as important as functionality, offering a range of Colorbond colours to match or complement your design palette.
- Versatile Applications: Suitable for a wide array of applications, from roofing and cladding to fencing and outdoor structures, where premium corrosion protection and colour matching are essential.
