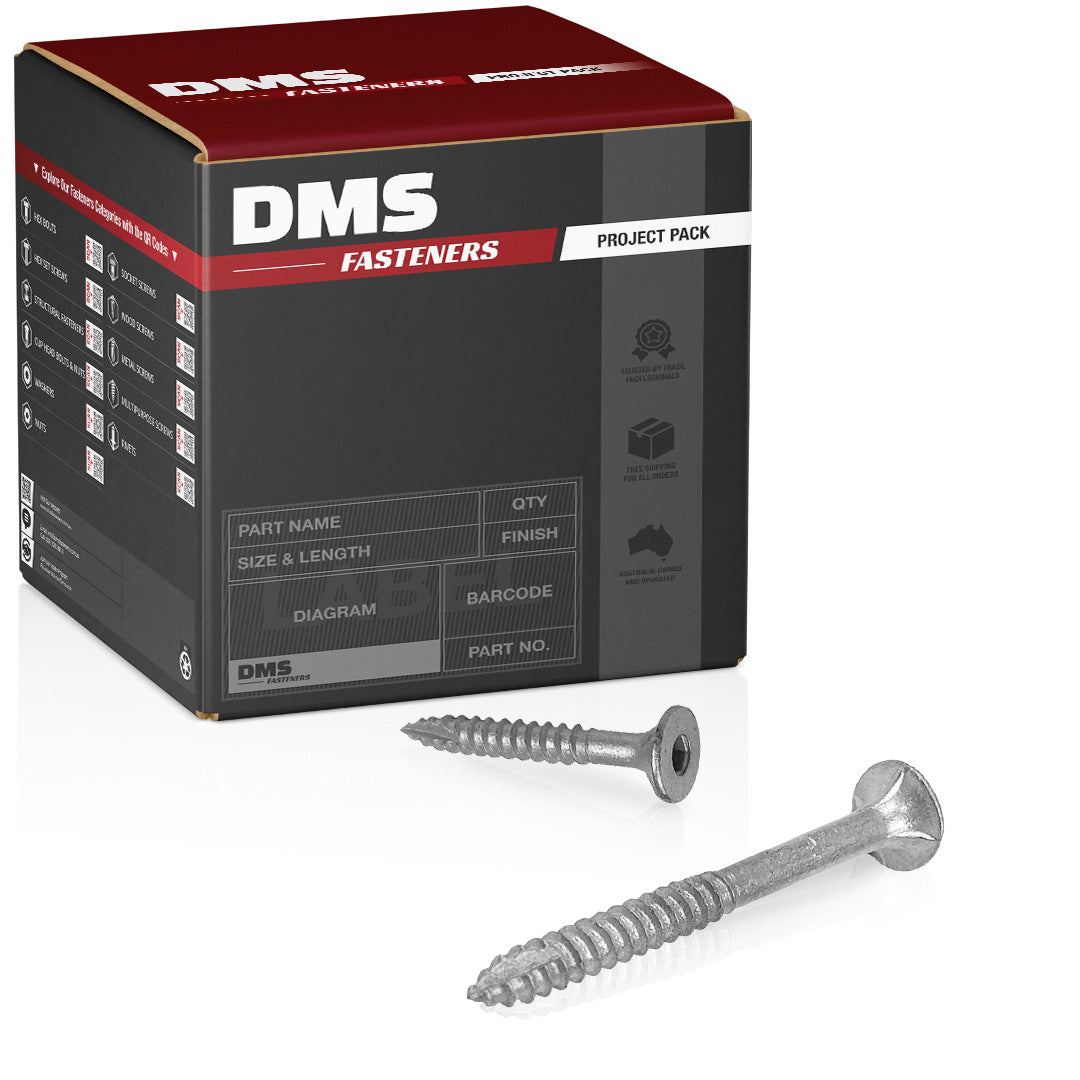

14g-10 x 150mm Bugle Batten Screw T17 (Type 17) Hex Drive Self Drilling Galvanised Class 3 / 4
Regular Price
$21.99 AUD

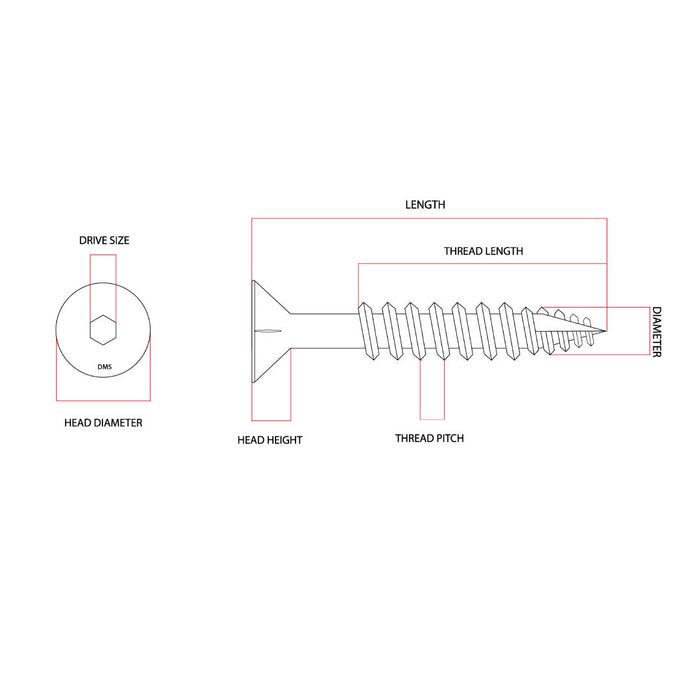

Product Specifications
| Screw Type | Bugle Batten Screw |
| Gauge | 14G |
| Drive Type | Internal Allen Key |
| Drive Size | Approx. 5 mm |
| Head Type | Bugle Head |
| Head Height | Approx. 4 mm |
| Head Diameter | Approx. 14 mm |
| Thread Diameter | 6.3 mm |
| Thread Pitch | 10 TPI |
| Thread Length | Contact us for exact specifications |
| Point Type | Type 17 Point |
| Point Length | Approx. 11.5 mm |
| Corrosion Resistance | Salt Spray Resistance exceeding 48 hours and up to several hundred hours. Suitable for outdoor environments exposed to the rain and humidity such as fencing. Unsuitable for highly corrosive environments. |
| Material Application | Ideal for hard or dense woods and construction with pressure-treated lumber. Excels in precision tasks such as furniture and decking construction. |
| Installation Recommendations | Ensure the correct drive type and size is used as mentioned above. Apply steady pressure when driving the screw to ensure the screw cuts into the material efficiently. |
| Product Type | Wood Screws |
This information is provided as a general guide and may vary slightly. If you’d like confirmation on specifications, our team can verify the details for you.
Type 17 Bugle Batten Screws for Wood
Elevate Your Wood Construction with Type 17 Bugle Batten Screws
Discover the unmatched efficiency and durability of our Type 17 Bugle Batten Screws, meticulously designed for wood construction projects. These screws are an essential component for professionals in woodworking, offering superior holding power and ease of use. Ideal for decking, landscaping, and structural applications, our Type 17 Bugle Batten Screws ensure your projects are built to last.
Product Features:
- Bugle Head Design: The bugle head allows for smooth countersinking in wood, distributing the load over a wider area to reduce material damage and ensure a flush finish.
- Type 17 Point: Specifically designed for wood, the Type 17 point allows for quick and easy penetration, minimizing the need for pre-drilling and reducing wood splitting. This feature is invaluable for working with both softwoods and hardwoods.
- Neo and Non-Neo Variations: To accommodate diverse project requirements, our screws are available with or without a neo (neoprene washer). The inclusion of a neo washer provides enhanced sealing against moisture, making it an excellent choice for outdoor or moisture-prone environments.
- Hex Socket Installation: Requires a hex socket for fast and efficient installation, ensuring a secure fit and superior torque control.
Specifications:
- Screw Gauges Available: 14g to suit a variety of material thicknesses and project demands.
- Lengths Available: 50mm, 65mm, 75mm, 100mm, 125mm, and 150mm, providing flexibility for different applications.
Finish Styles:
- Galvanised: Offers robust zinc coating for outstanding corrosion resistance, ideal for outdoor applications and areas exposed to moisture.
- G304 Stainless Steel: Provides excellent corrosion resistance for general outdoor use, balancing durability with resistance to environmental elements.
- Zinc Yellow: Adds both corrosion resistance and a visually appealing, bright finish. Ideal for projects where aesthetics are crucial, Zinc Yellow ensures your work stands out with a distinctive look.
Use Cases:
- Decking and Landscaping: Ensure a secure and aesthetically pleasing finish for outdoor decking, steps, and landscaping features.
- Structural Applications: Ideal for fastening roof battens, wall studs, and other structural components, providing a strong hold and resistance to environmental factors.
- Outdoor Structures: With the neo variation, these screws are perfectly suited for constructing pergolas, gazebos, and other outdoor structures that require durability and moisture resistance.
